The F-4300 series pressure to electric switches are designed for applications requiring narrow operating deadband. They are available in adjustment ranges from 2 to 100 psi full scale. Four mounting styles, plus a wide variety of options including gold contacts, factory pre-set, and optional diaphragm materials, make the F-4300 series an excellent choice for the O.E.M.

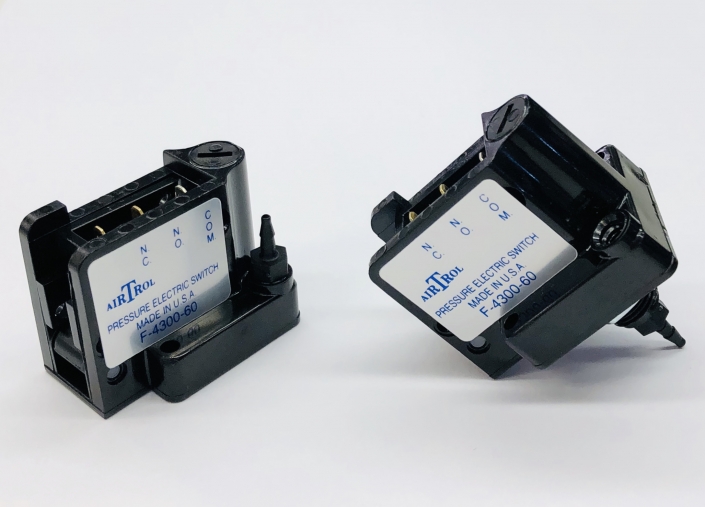

F-4300 Series Low Deadband Pressure Switch
Specifications
| CONTACT FORM | Single Pole, Double Throw |
| TERMINATIONS | .110 Quick-Connect |
| AGENCY COMPLIANCES | UL/CSA Approved Microswitch |
| OPERATING SPEED | 25 MSEC |
| MATERIALS | |
|---|---|
| Body | Polysulfone (Wetted Material) |
| Diaphragm | Polyurethane (Wetted Material) Standard – Options include Viton, EPDM (for water applications), and Silicone. |
| Spring | Stainless Steel |
| Others | Nylon, Carbon Filled Nylon, Acetal |
| TEMPERATURE RANGE | 40° TO 150° F [4°-66° C] |
| REPEATABILITY | < +/- 2% F.S. OR .15 PSI, (1.03 kPa) whichever is greater, after 10,000 cycles |
Ordering Information
