CV-062 SERIES Check Valve

A check valve is a type of valve that allows fluids to flow in one direction but closes automatically to prevent flow in the opposite direction (backflow).

Applications Include:
Medical, HVAC, Light Industrial, Process Control, Pumps, Gas Mixers and Drip Irrigation

CV-062 SERIES Check Valve

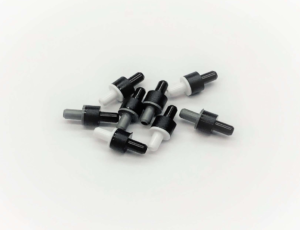

CV-062 Check Valve

Specifications

REVERSE FLOW:< 0.15 SCIM (2.5 cc/min) @ 1 PSI Differential
MAXIMUM SUPPLY:30 PSI
CRACKING PRESSURE:< 0.8” Water Column
FORWARD FLOW: 0.25 SCFM (7 LPM) at 5 PSI Supply
RECOMMENDED FILTRATION: 5 micron
OPERATING TEMPERATURE:40 – 150 degrees F (4 – 66 C)
PORT CONNECTIONS: Straight Connection for 1/16” ID Flexible Tubing

Ordering Information

CV-062

Mounting Dimensions

CV-062-dimention
